| Rám |

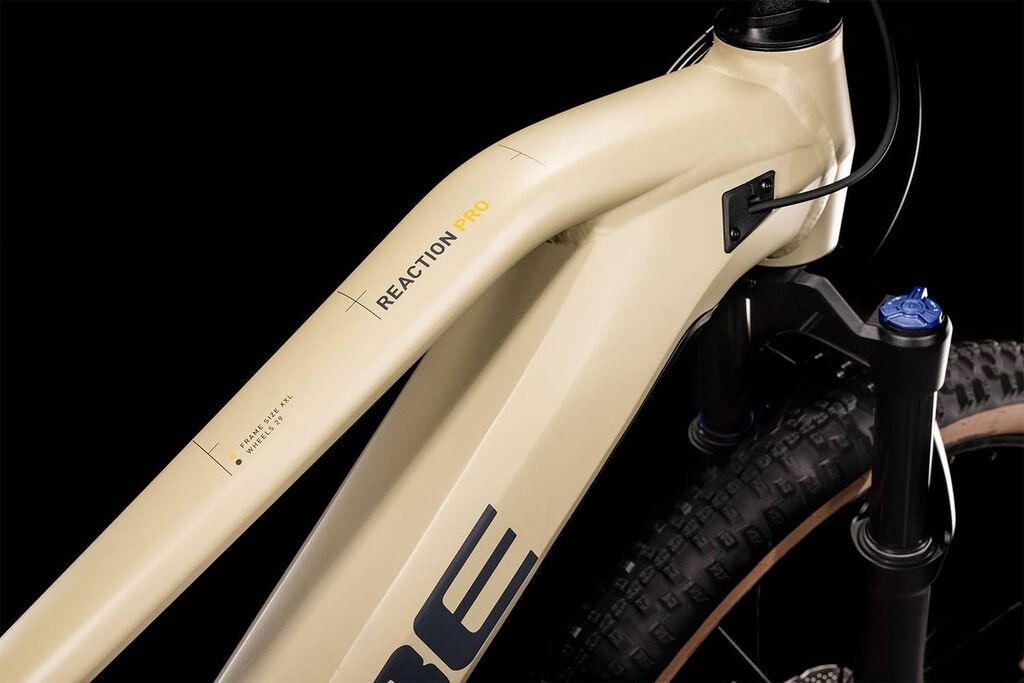

Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
| Velikost |
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19") |
| Vidlice |
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
| Motor |
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| Baterie |
Bosch PowerTube 625 |
| Displej |
Bosch Purion |
| Nabíječka |
Bosch 2A |
| Brzdy |
Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Přehazovačka |
Shimano Deore RD-M5100-SGS, 11-Speed |
| Řazení |
Shimano Deore SL-M5100, Rapidfire-Plus |
| Kliky |

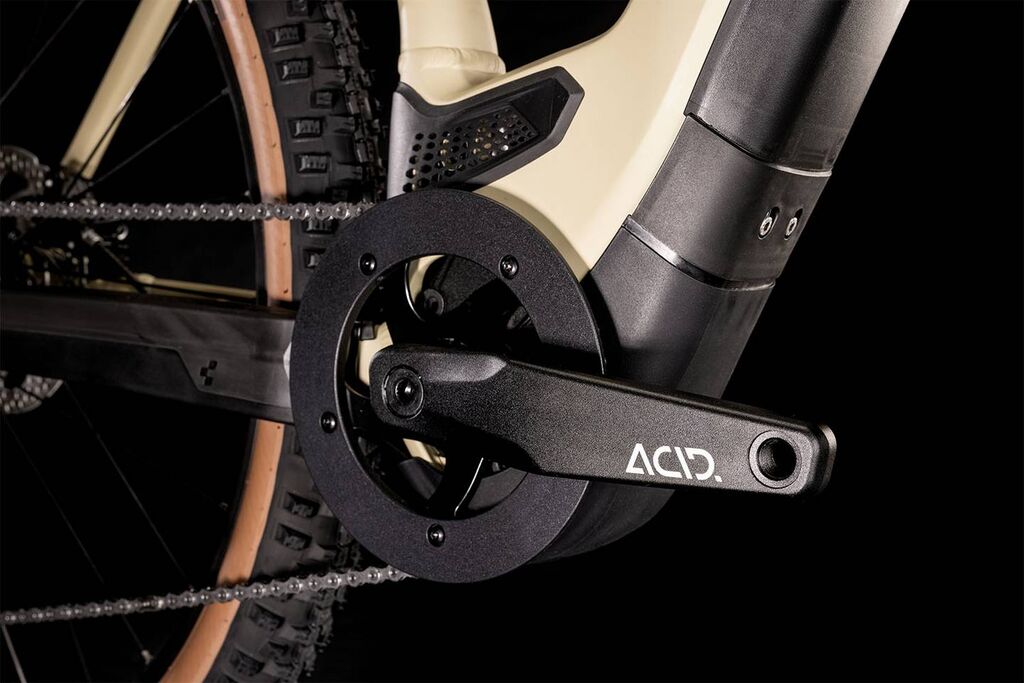

ACID E-Crank, 175mm, 38T |
| Kazeta |
Shimano Deore CS-M5100, 11-51T |
| Řetěz |
KMC X11 |
| Přední náboj |
Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Zadní náboj |
Shimano FH-TX505, QR, Centerlock |
| Ráfky |
CUBE EX30, 32H, Disc, Tubeless Ready |
| Pláště |
Schwalbe Smart Sam, Active, 2.6 |
| Řidítka |
CUBE Rise Trail Bar, 720mm |
| Představe |
CUBE Performance Stem E-MTB, 31.8mm |
| Gripy |
Natural Fit MTB Performance Lock On |
| Sedlovka |
CUBE Performance Post, 30.9mm |
| Sedlová objímka |
CUBE Varioclose, 34.9mm |

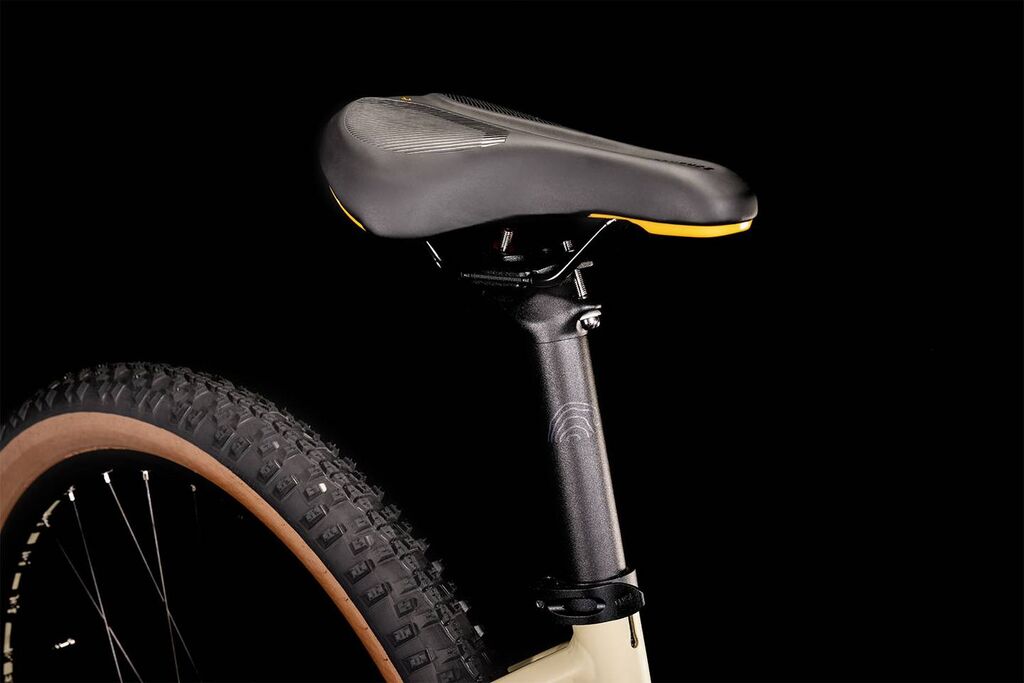

| Sedlo |
Natural Fit Sequence |
| Hlavové složení |
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Pedály |
CUBE PP MTB |
